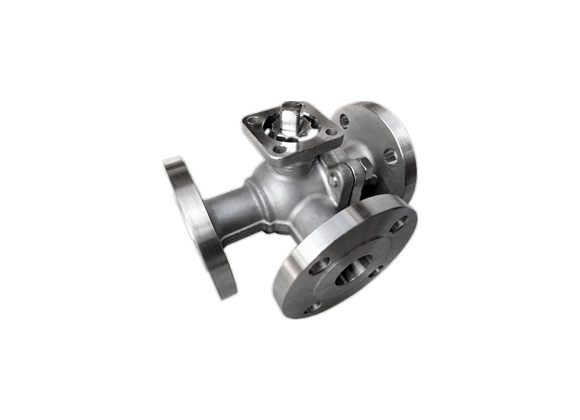

3 Way Flanged Ball Valve - High Pressure, Leak-Tight, ANSI

Oct . 23, 2025 17:00

Field Notes on a 3-way valve that quietly does it all

If you run process lines for a living, you know the difference between a clean changeover and a messy one. That’s where the 3 Way Flanged Ball Valve slips in and, frankly, saves shifts. Built in the South of Huanmadian Village Town, Ningjin County, Xingtai, Hebei Province, China, it’s a compact diverter/mixer that, in real plants, reduces leak points and speeds up maintenance. I’ve seen it in chemical transfer racks and even in a brewery’s CIP loop—two very different worlds, same problem solved.

At a glance: flanged ends, low-torque quarter-turn, T- and L-port options.

What it is (and why T vs. L matters)

The three-way design comes in T-port (mixing/three-direction diverting) and L-port (two-position diverting). Many customers say the L-port is easier to interlock for “A or B to outlet,” while T-port shines for blending or bypass loops. To be honest, I’ve seen projects overcomplicate this—half the time, all you need is an L-port with a clear handle stop.

Key specifications (typical build)

Sizes	DN15–DN200 (1/2"–8"), larger on request
Pressure class	ASME B16.5 Class 150/300 (≈ PN16/PN40); real-world use may vary
Body/ball	WCB, CF8 (304), CF8M (316); duplex on request
Seats/seals	PTFE, RPTFE, PEEK; stem packing PTFE + graphite anti-fire
Porting	T-port or L-port, quarter-turn with ISO 5211 actuator pad
Standards	Face-to-face ASME B16.10; Flanges ASME B16.5; Test API 598/EN 12266; Marking MSS SP-25
Tests (typical)	Shell 1.5× design; seat 1.1×; helium leak ≤ 1×10⁻⁶ mbar·L/s (optional); torque logged
Service life	≈ 100,000 cycles with RPTFE seats under clean media; abrasive duty reduces life
Certifications	ISO 9001; CE (PED); ATEX on request; NACE MR0175 trim on request

How it’s made (the short version)

Materials with PMI traceability, precision machining of the three-port body, mirror-finished ball (Ra ≈ 0.2 μm), seat interference matched to torque targets, blowout-proof stem, and anti-static device. NDT where needed (PT/UT), hydro/seat tests per API 598, then coating, flange protectors, and clean packing. It sounds standard; the difference shows up in torque curves and leakage data—this unit’s been boringly consistent, which is what you want.

Where it works well

- Chemical and solvent manifolds (divert A/B to header).
- Water treatment skids (bypass lines, backwash loops).
- Food & beverage CIP return/mix (RPTFE seats recommended).
- Oil & gas utilities and fuel transfer (consider fire-safe seats).
- HVAC primary/secondary loops and thermal oil circuits.

A quick field story

One midsize coatings plant swapped a tee-and-two-valve setup for a single 3 Way Flanged Ball Valve on each solvent rack. Changeover time dropped ≈ 22%, and snagged leaks vanished. Maintenance liked the ISO 5211 pad—bolt on the actuator, done. It wasn’t flashy, just quietly effective.

Vendor snapshot (what buyers usually ask me)

Vendor	Certs	Lead Time	MOQ	Price (Class 150, 2")	Notes
Thrive Valve (Xingtai, Hebei)	ISO 9001, CE; EN 12266 test reports	≈ 3–5 weeks	1–5 pcs	$$ (around mid-market)	Consistent torque data; flexible porting
Regional OEM	ISO 9001, PED; API 607 option	4–8 weeks	10+ pcs	$$$	Broader materials; pricier
Budget Importer	Basic CoC	Stock–2 weeks	1 pc	$	Check seat leakage; mixed feedback

Customization and options

Actuation (pneumatic/electric) via ISO 5211; anti-static and fire-safe kits; locking handles; cavity relief; NACE-compliant trim; 3-piece body for maintenance; T-port drilling variants; special coatings for brine. I guess the unglamorous win is simply getting the port map right for your P&ID.

Industry trend check

We’re seeing more three-way valves replacing two-valve manifolds, pushed by fewer leak points and easier actuation. Also, traceable test packs (torque graphs, helium leak certificates) are becoming a purchase spec, not a nice-to-have.

Citations: [1] ASME B16.5 – Pipe Flanges and Flanged Fittings. [2] API 598 – Valve Inspection and Testing. [3] ISO 5211 – Mounting interfaces for part-turn actuators. [4] EN 12266-1/2 – Industrial valves testing. [5] API 6D – Pipeline Valves. [6] NACE MR0175/ISO 15156 – Materials in H2S environments.
