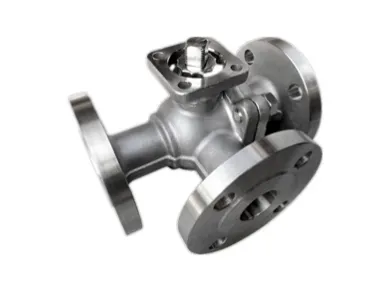

3 Way Flanged Ball Valves: Pressure and Size Insights

In industrial fluid control systems, efficient flow management is critical. 3 way flanged ball valves provide superior directional control, allowing for diversion, mixing, or shut-off of media in complex piping networks. These valves are essential in applications requiring high-pressure handling, compact designs, and reliable performance.

Key Innovations in 3 Way Flanged Ball Valves

• Multi-Port Functionality: The 3 way flanged ball valve enables flow diversion, mixing, or shut-off, optimizing system flexibility.
  · High-Pressure Resilience: Designed for demanding environments, the high pressure 3 way ball valve withstands extreme conditions without leakage.
  · Compact & Precise: The 3 way ball valve 1 2 inch offers space-saving efficiency while maintaining precise flow control.
  · Durable Materials: Constructed from stainless steel, carbon steel, or alloy for corrosion resistance and longevity.
•

Typical Applications of 3 Way Flanged Ball Valves

• Chemical Processing: Facilitates mixing and diverting aggressive fluids safely.
  · Oil & Gas Systems: Manages high-pressure flow in pipelines and refineries.
  · Water Treatment: Controls distribution and blending in filtration systems.
  · HVAC & Heating Systems: Regulates hot and cold water flow for optimal temperature control.
•

Why Choose 3 Way Flanged Ball Valves?

• Versatile Flow Control: The 3 way flanged ball valveallows T-type (diversion) and L-type (distribution) configurations for different flow needs.
  · Leak-Free Performance: Precision machining ensures tight sealing under high pressure.
  · Easy Installation: Flanged connections simplify integration into existing pipelines.
  · Low Maintenance: Robust design minimizes wear and extends service life.
•

Installation Guidelines for 3 Way Flanged Ball Valves

• Verify Flow Direction: Ensure correct alignment (T-type or L-type) for intended function.
  · Secure Flange Connections: Use appropriate gaskets and bolts to prevent leaks.
  · Avoid Excessive Torque: Over-tightening can damage the valve or flange seats.
  · Pressure Testing: Conduct a system test before full operation to confirm integrity.
•

Understanding 3 Way Flanged Ball Valve Configurations

The 3 way flanged ball valve comes in T-type and L-type designs. The T-type connects three orthogonal pipelines, enabling flow diversion or shut-off of one channel. The L-type only connects two pipelines at a time, making it ideal for flow distribution rather than full diversion. Selecting the right configuration ensures optimal system performance.

High Pressure 3 Way Ball Valve: Performance and Durability

The high pressure 3 way ball valve is engineered to handle extreme conditions without failure. Its reinforced body and precision-machined seats prevent leakage, even under sustained high-pressure operation. Common applications include oil & gas, chemical processing, and hydraulic systems where reliability is non-negotiable.

Compact Efficiency with 3 Way Ball Valve 1 2 Inch

The 3 way ball valve 1 2 inch provides a space-saving solution for tight installations without sacrificing performance. Its compact design is ideal for HVAC, instrumentation, and small-scale industrial systems where precise flow control is required in limited spaces.

FAQs: 3 Way Flanged Ball Valves, Pressure, and Size Considerations

What are the main differences between T-type and L-type 3 way flanged ball valves?

The 3 way flanged ball valvein T-typeallows three-way flow diversion, while the L-type only connects two pipelines at a time, making it suitable for distribution rather than full flow mixing.

Can a high pressure 3 way ball valve be used in steam applications?

Yes, the high pressure 3 way ball valveis suitable for steam systems, provided it is constructed from heat-resistant materials like stainless steel.

What industries commonly use the 3 way ball valve 1 2 inch?

The 3 way ball valve 1 2 inchis widely used in HVAC, instrumentation, and small-scale chemical processing due to its compact size and precise control.

How do I determine the correct flange rating for a 3 way flanged ball valve?

Match the flange rating  with the system’s maximum pressure to ensure safe and leak-free operation.

What maintenance is required for a high pressure 3 way ball valve?

Regular inspection for wear, lubrication of the ball mechanism, and pressure testing ensure long-term reliability of the high pressure 3 way ball valve.

The 3 way flanged ball valve is a versatile solution for complex flow control needs, whether in high-pressure systems or compact installations. With options like the high pressure 3 way ball valve and the 3 way ball valve 1 2 inch, industries can achieve efficient, durable, and precise fluid management. Proper selection and installation ensure optimal performance across various applications.
