Field Notes on the 3PCS Ball Valve With Mounting Pad

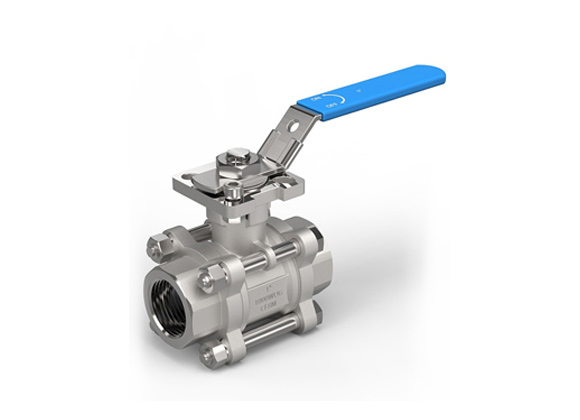

If you’ve walked a plant floor lately, you’ve probably noticed a quiet shift: maintenance teams want modular valves that drop straight under an actuator without brackets and fuss. That’s where a 3PCS Ball Valve With Mounting Pad shines. It keeps downtime low, spares accessible, and—this is underrated—torque transfer consistent. The unit I’m looking at today is made in South of Huanmadian Village Town, Ningjin County, Xingtai, Hebei Province, China, and it’s built as a three-piece body clamped by four bolts. Simple, serviceable, solid.

What’s trending in valves (and why this matters)

Two big trends: ISO 5211 mounting interfaces (for easy actuation) and verifiable testing (API 598 leakage classes are table stakes now). Many customers say they’re done with “mystery” torque tables and undocumented metallurgy. In fact, I’m seeing buyers demand EN 10204 3.1 material certs even for general utility service. This 3PCS Ball Valve With Mounting Pad answers that with an ISO 5211 pad, blowout-proof stem, and straightforward body design you can re-pack in place.

Quick technical spec (real-world values may vary)

How it’s built (short version)

Materials are cast or forged (customer choice), CNC-machined, then assembled as a three-piece set: center body + two end caps, four bolts torqued to spec. Seats and stem packing are fitted to torque targets around 25–40% of cold working pressure torque envelope, depending on size. QC includes PMI on critical heats, dimensional checks, and API 598 leak testing. Typical service life? Around 80,000–120,000 cycles in clean media with RPTFE seats; of course, slurry eats everything faster.

Where it’s used

General utilities, food-grade washdown (316 + PTFE), compressed air skids, chemical dosing lines, and even mild corrosives (verify with NACE MR0175 if sour). Skid builders like the 3PCS Ball Valve With Mounting Pad because you can bolt a small electric actuator on the pad and call it a day.

Test data snapshot

Recent factory lot: DN25 CF8M, RPTFE seats—shell test at 1.5× rating with zero visible leakage; seat test per API 598, leakage rate: none detected; average break torque ≈ 6–8 N·m at 20°C. Not bad.

Vendor comparison (what buyers ask me for)

Customization notes

Options include CF8M bodies for chlorides, RPTFE seats for higher cycle life, cavity fillers for food/pharma, and low-temperature seals. Fire-safe trim per API 607 is available on request. Actuator + limit switch packages can be matched via the ISO 5211 pad.

Mini case study

A beverage plant swapped legacy two-piece valves for this 3PCS Ball Valve With Mounting Pad on a CIP loop. Result: actuator swap time dropped from ~30 minutes to under 8, and leaks after thermal cycling went from “weekly tweaks” to “set and forget.” Their maintenance lead told me—half joking—that the biggest issue now is remembering where they stored the spare packing kits.

Compliance and documentation

Designed to ASME B16.34 pressure/temperature guidance, tested to API 598, mounting per ISO 5211. Material traceability via EN 10204 3.1. For sour service, confirm against NACE MR0175/ISO 15156. To be honest, that’s the checklist most auditors want to see.

Citations

1. ISO 5211: Industrial valves — Part-turn actuator attachments
2. API 598: Valve inspection and testing
3. ASME B16.34: Valves — Flanged, Threaded, and Welding End
4. NACE MR0175/ISO 15156: Materials for H2S service
