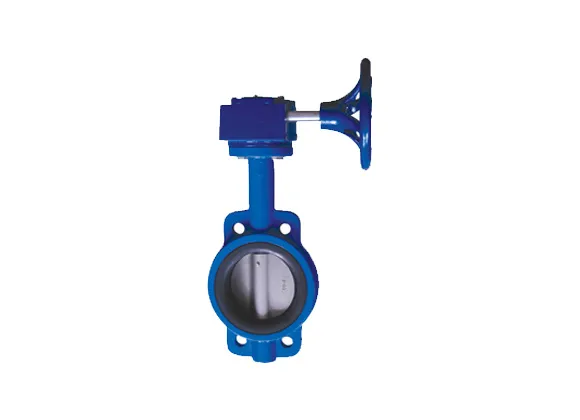

Lug Type Butterfly Valves: Lug Valve Installation Insights

In today’s industrial landscape, efficient flow control solutions are in high demand. Lug type butterfly valves stand out as a versatile and reliable choice for various applications, offering durability, ease of installation, and cost-effectiveness. Designed for wholesale distribution, these valves cater to industries requiring robust performance in piping systems.

Why Choose Lug Type Butterfly Valves?

• Robust Construction: The lug type butterfly valvefeatures a sturdy design with threaded inserts (lugs) that allow easy mounting between flanges without nuts, making installation and maintenance seamless.
  · Bidirectional Sealing: Unlike wafer-style valves, lug valves provide a secure seal in both flow directions, reducing leakage risks.
  · Space-Saving Design: Their compact form factor makes them ideal for systems with limited space.
  · Cost-Effective Solution: With fewer components and simpler installation, lug type butterfly valves offer long-term savings.
•

Typical Applications of Lug Type Butterfly Valves

• Water Treatment Plants: Used in filtration and distribution systems.
  · HVAC Systems: Ideal for regulating airflow and liquid circulation.
  · Chemical Processing: Resistant materials ensure compatibility with aggressive fluids.
  · Oil & Gas Pipelines: High-pressure handling with minimal maintenance.
•

Key Considerations When Selecting Lug Type Butterfly Valves

• Material Compatibility: Ensure the valve body (cast iron, stainless steel, etc.) matches the fluid type.
  · Pressure & Temperature Ratings: Verify the valve meets system requirements.
  · Actuation Options: Choose between manual levers, gear operators, or automated actuators.
  · End Connection Standards: Confirm flange dimensions (ANSI, DIN, etc.) for proper fit.
•

Step-by-Step Lug Type Butterfly Valve Installation Guide

1.Inspect the Valve: Check for damage and ensure proper sizing before installation.

2.Align Flanges: Position the lug valve between pipe flanges, ensuring bolt holes match.

3.Insert Bolts: Thread bolts through the lugs and flanges, tightening evenly in a crisscross pattern.

4.Avoid Over-Tightening: Excessive force can distort the valve seat, affecting sealing performance.

5.Test the System: Conduct a pressure test to confirm leak-free operation.

FAQs: Common Questions About Lug Type Butterfly Valves

1. What distinguishes a lug type butterfly valve from other valve types?

2.

3. A lug type butterfly valvehas threaded lugs that allow direct bolting between flanges, offering secure mounting without needing nuts on both sides.

4.

5. Can a lug valve be used in high-pressure applications?

6.
   Yes, provided the valve’s pressure rating matches the system requirements. Always verify specifications before installation.
7.

8. What are the maintenance requirements for a lug type butterfly valve?

9.
   Regular inspection of seals and lubrication of moving parts ensures longevity. Minimal maintenance is needed due to their simple design.
10.

11. Are lug type butterfly valves suitable for corrosive fluids?

12.

13. Yes, if constructed from corrosion-resistant materials like stainless steel or lined with PTFE.

14.

15. How does lug type butterfly valve installation differ from wafer-style valves?

16.
    Lug valvesbolt directly between flanges, while wafer valves rely on flange pressure for sealing, making lug valvesmore secure in high-vibration environments.
17.

In summary, lug type butterfly valves provide a dependable, cost-efficient solution for industrial flow control. Their easy lug type butterfly valve installation, bidirectional sealing, and adaptability make them a preferred choice for wholesale distribution. By understanding their features and proper installation techniques, businesses can optimize system performance and reliability.
