What Buyers Really Ask About NPT Threaded Gate Valves (and What Matters)

If you work around piping, you’ve probably searched for an npt gate valve and then fallen into a rabbit hole of specs and acronyms. Been there. In the field, a valve either seals, lasts, and threads cleanly—or it doesn’t. The rest is, well, helpful context.

What it is (and why it’s still popular)

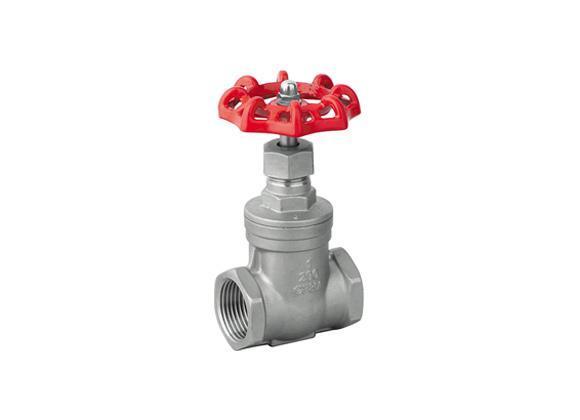

A threaded gate valve uses a rising or non-rising stem and a sliding wedge to fully open or close flow. It’s not for throttling; it’s for shutoff. The units I’ve been testing lately—especially the Gate Valve NPT/BSPT Threaded from a manufacturer in South of Huanmadian Village Town, Ningjin County, Xingtai, Hebei Province, China—aim for repeatable sealing, modest torque, and fuss-free maintenance. Many customers say they pick a npt gate valve for simple installs where welding is overkill or not allowed.

Typical applications

• Utility water, HVAC loops, and building services
• General industrial fluids, light oils, and compressed air
• Food and beverage utilities (CIP return, non-critical lines)
• Skids and OEM packages where npt gate valve swaps are common

Product snapshot and specs

Below is a typical configuration I see requested. Real-world use may vary a bit, to be honest.

Manufacturing and QA (quick tour)

• Materials: ASTM A351 CF8/CF8M body, 304/316 stem, PTFE or graphite packing
• Methods: precision investment casting, CNC threading per ASME B1.20.1 or ISO 7-1, hydrostatic test
• Testing: API 598 leakage class; visual finish; torque-to-operate sampling; thread gauge checks
• Service life: around 10,000 open/close cycles in lab; field life varies with media and maintenance
• Certifications: ISO 9001 factory QA; material traceability certificates available

Vendor comparison (what buyers really compare)

Field notes and feedback

Installers like that the threads are clean—no galling, which, surprisingly, still happens on cheaper bodies. One HVAC contractor told me their npt gate valve replacements dropped by half after switching to CF8M. Not scientific, but it tracks with the lab numbers.

Case in point: a Midwest craft brewery used 2" NPT stainless for utility water and CIP return. After 18 months, seat leakage remained below 10 ml/min at 1.1× pressure (API 598 seat test), which is essentially “tight” for their use.

Customization options

• Engraved logo and heat code stamping
• Graphite packing for higher temps
• Lockable handwheel or T-handle for compact panels
• Optional BSPT threads if your region prefers it

Quick buying checklist

• Confirm thread standard: NPT per ASME B1.20.1 vs BSPT per ISO 7-1
• Match pressure/temperature with your media and elastomers
• Ask for API 598 test reports and MTRs; it’s worth it
• Plan torque access; gate valves need full stroke clearance

Author’s note: specs above reflect typical offerings; always verify against current datasheets and local codes. I guess that’s obvious, but it saves headaches.

Authoritative citations

1. ASME B1.20.1 – Pipe Threads, General Purpose (inch). https://www.asme.org
2. ISO 7-1 – Pipe threads where pressure-tight joints are made on the threads. https://www.iso.org
3. API 598 – Valve Inspection and Testing. https://www.api.org
4. ASTM A351/A351M – Castings, Austenitic Steel. https://www.astm.org
5. MSS SP-80/SP-70 – Gray Iron and Steel Valves. https://www.msshq.org
