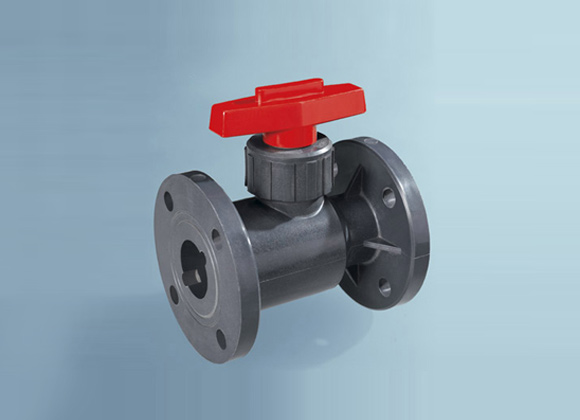

pvc ball valve flange type – Corrosion-Resistant, Leak-Tight

Oct . 22, 2025 17:45

Inside the Flanged PVC Ball Valve Trend: Field Notes, Hard Specs, and Real-World Picks

If you’re hunting for a compact, corrosion-proof shutoff valve that mates neatly to flanged lines, you’ve probably come across the Pvc Ball Valve Flange Type. To be honest, I used to think “it’s just another plastic valve.” Then I toured a few plants, talked to maintenance folks, and—surprisingly—found these are replacing metal valves in more places than I expected.

Why flanged PVC ball valves are having a moment

Three currents are pushing this forward: aggressive corrosion in water/chemical service, tighter OPEX budgets, and a clear push for lighter, safer installs without hot work. Many customers say the install time drops dramatically, and in fact, the torque-to-close stays stable, even after a few seasons. The Pvc Ball Valve Flange Type from Hebei (manufactured in South of Huanmadian Village Town, Ningjin County, Xingtai) fits that narrative quite well.

Core specifications (typical configuration)

Parameter	Value (≈ / typical)
Size range	DN15–DN150 (1/2"–6")
Pressure rating	PN10 (up to PN16 on request; real-world use may vary)
Body/ball	PVC-U (CPVC optional for hotter media)
Seats/Seals	PTFE seats; EPDM or FKM O-rings
End connection	Flanged: EN 1092-1 PN10; ANSI Class 150 pattern available via adaptor
Temperature window	0–60°C (PVC-U); up to ≈90°C (CPVC)
Standards & tests	Hydrostatic per ISO 9393 (shell 1.5×PN, seat 1.1×PN); materials to ASTM D1784
Service life	10–15 years typical; UV/temperature/chemistry dependent

Manufacturing & QA (how it’s actually built)

Materials: PVC-U resin compounded to ASTM D1784; PTFE seats; EPDM/FKM seals.
Methods: Injection-molded body/ball, CNC-finished sealing lands, ultrasonic cleaning, torque-calibrated assembly.
Testing: Hydrostatic shell/seat per ISO 9393; air leak test; cycle test to >50,000 on request; visual inspection.
Traceability: Heat/batch codes; option for material certification.

Where it works best

Think water treatment skids, chemical dosing lines, aquaculture, irrigation manifolds, pool systems, and chilled-water loops (non-steam). For potable water, ask for NSF/ANSI/CAN 61 options. In harsh acid/alkali duty, many operators switch to Pvc Ball Valve Flange Type with FKM seals—less swelling, fewer callbacks.

Vendor snapshot (field-notes comparison)

Vendor	Corrosion Resistance	Pressure/Temp	Customization	Lead Time	Indicative Cost
Thriveon (Pvc Ball Valve Flange Type)	High in acids/alkalis	PN10, 0–60°C PVC-U (≈90°C CPVC)	Seats/seals, flanges, color, actuation	≈2–4 weeks	$ (budget-friendly)
Generic Importer A	Variable (batch-to-batch)	PN6–PN10 typical	Limited	Stock-dependent	$
Stainless Steel Alt.	Excellent, except chlorides	Higher P/T window	Broad (trims, fire-safe)	4–8 weeks	$$$

Customization checklist

Flange drillings: EN 1092-1 PN10 or ANSI 150 patterns.
Seals: EPDM for water; FKM for solvents/chemicals.
Actuation: lever, ISO 5211 pad for pneumatic/electric.
Color/marking: grey standard; custom on request.

Mini case studies (from the floor)

Wastewater plant, Southeast Asia: Replaced corroded metal valves on polymer dosing. Outcome: zero visible corrosion after 18 months; operators report “lighter feel, no seepage.”

Metal finishing line, EU: Upgraded to CPVC variant for 70–80°C rinse. Result: leak rate 0 mL/h in acceptance tests; cycle life exceeded 50k without seat replacement (lab data).

Compliance bits worth checking

Factory QMS: ISO 9001 certificate.
Material: ASTM D1784 PVC grade; RoHS/REACH declarations.
Hydrostatic tests to ISO 9393; flange compatibility per EN 1092-1 or ANSI Class 150 patterns.
Potable water: request NSF/ANSI/CAN 61 when required.

Bottom line: if your duty is corrosive but not ultra-high temperature or pressure, a Pvc Ball Valve Flange Type is a pragmatic, serviceable choice—and, I guess, the maintenance teams won’t miss the rust.

Authoritative citations

ISO 9393: Thermoplastics valves for industrial applications — Pressure test methods and requirements.
ASTM D1784: Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated PVC (CPVC).
EN 1092-1: Flanges and their joints — Circular flanges for pipes, valves, fittings.
NSF/ANSI/CAN 61: Drinking Water System Components — Health Effects.
ISO 5211: Industrial valves — Part-turn actuator attachments (for actuation interface).
