Stainless Steel Flange Check Valves: What Buyers Actually Need to Know

If you’re shopping for a stainless steel flange check valve, the ZHMSS-A1 SS Body Swing Type Check Valves Flanged End caught my eye for a simple reason: it’s built for real plants, not catalogs. Made in South of Huanmadian Village Town, Ningjin County, Xingtai, Hebei, China, this model has been turning up in chemical skids and food lines where corrosion and hygiene aren’t negotiable. Price? Not the cheapest. Value? That’s where it gets interesting.

Industry trend check (no pun intended)

Across 2024–2025, I’m seeing three themes: faster audits for sanitary duty, more duplex/CF3M for aggressive media, and tighter leakage expectations even on swing checks. In food and specialty chemicals, customers ask for clean-in-place survivability and documented materials. Surprisingly, even mid-sized plants now ask for EN 10204 3.1 certs by default. Lead times are squeezing, but smart vendors are stocking common Class 150/300 bodies and finishing to order.

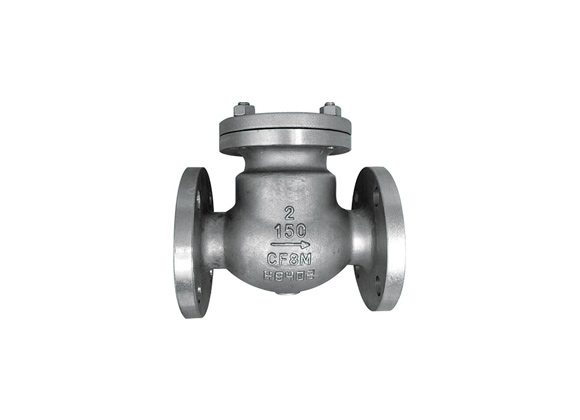

Quick spec snapshot: ZHMSS-A1

Body/Disc Material	CF8M (SS316) or CF3M (low carbon) ≈ standard; others on request
Sizes	DN25–DN300 (1"–12") typical; larger by inquiry
Pressure Classes	ASME Class 150/300; PN16–PN40 ≈ equivalent
End Flanges	ASME B16.5 or EN 1092-1; RF default, RTJ optional (Class 300)
Face-to-Face	ASME B16.10 swing check pattern
Seats	PTFE/EPDM standard; metal or graphite for high-temp (real-world use may vary)
Temperature Window	-20 to 200°C with soft seat; up to ≈ 400°C with metal/graphite
Testing	API 598 / ISO 5208: shell 1.5×, seat 1.1×; leakage Rate A achievable
Certs	ISO 9001 plant-level; MTRs EN 10204 3.1; NACE MR0175 option

How it’s built and validated

- Materials: SS316/CF8M castings, optional CF3M; PMI spot-checks on heat lots.
- Methods: CNC machining, seat lapping, solution anneal where specified.
- Tests: Hydrostatic shell 1.5×; seat 1.1× per API 598; dye penetrant on critical sealing; visual per MSS-SP-55; torque/hinge swing check.
- Service life: ≈ 10–20 years in neutral media; shorter in chlorides or abrasive slurries (choose CF3M + hard-faced seat).
- Cleanliness: optional degreasing/oxygen cleaning for pharma/food; PTFE compliant with 21 CFR 177.1550.

Where a stainless steel flange check valve shines

- Chemical transfer: acids/solvents, backflow protection after pumps.
- Food & beverage: CIP/SIP cycles, low hold-up volume; customers say it’s easy to drain.
- Water treatment: chlorination lines where bronze struggles with corrosion.
- Steam condensate: with metal seat, operators report quieter slam vs. wafer checks (I was skeptical, but the hinge mass helps).

Two quick case notes

- Specialty citrus processor: swapped old cast iron checks for stainless steel flange check valve units; seat leakage fell to “near zero” on startup, and CIP recovery time dropped ≈ 8%.
- Midstream chemical skid builder: specified Class 300 CF8M with graphite seats; witnessed test per API 598 passed first time, no rework—rare and appreciated.

Vendor comparison (field impressions)

Vendor	Strengths	Watch-outs	Lead Time ≈
Thriveon (ZHMSS-A1)	Solid CF8M castings; flexible flange standards; clean machining; good 3.1 docs	Not the cheapest; metal seats add a few days	2–5 weeks
Vendor A (EU)	Premium finish; broad approvals	Longer queue; higher price band	6–10 weeks
Vendor B (Generic APAC)	Aggressive pricing; decent for utilities	Documentation gaps; variable seat leakage	3–6 weeks

Customization menu

- Flanges: ASME B16.5 or EN 1092-1; RF/RTJ; drilled patterns per project.
- Seats: PTFE/EPDM/Viton; metal or graphite for high temp; lapped for Rate A targets.
- Materials: CF8M/CF3M; duplex on request; NACE MR0175 trim for sour service.
- QA: MTRs 3.1, PMI, DPT, pressure test charts; optional ISO 15848 fugitive emissions (where relevant).

Bottom line: a stainless steel flange check valve like the ZHMSS-A1 isn’t a commodity if you care about cleanliness, traceability, and repeatable seat tests. Many customers say it just installs clean and stays that way, which—honestly—is what you want from a check valve you barely notice after commissioning.

Authoritative citations

1. API 594: Check Valves—Flanged, Lug, Wafer.
2. API 598: Valve Inspection and Testing.
3. ASME B16.10: Face-to-Face and End-to-End Dimensions of Valves.
4. ASME B16.5 / EN 1092-1: Pipe Flanges and Flanged Fittings.
5. ISO 5208: Industrial Valves—Pressure Testing of Metallic Valves.
6. NACE MR0175 / ISO 15156: Materials for H2S-containing environments.
7. FDA 21 CFR 177.1550: Perfluorocarbon Resins (PTFE) for food contact.
